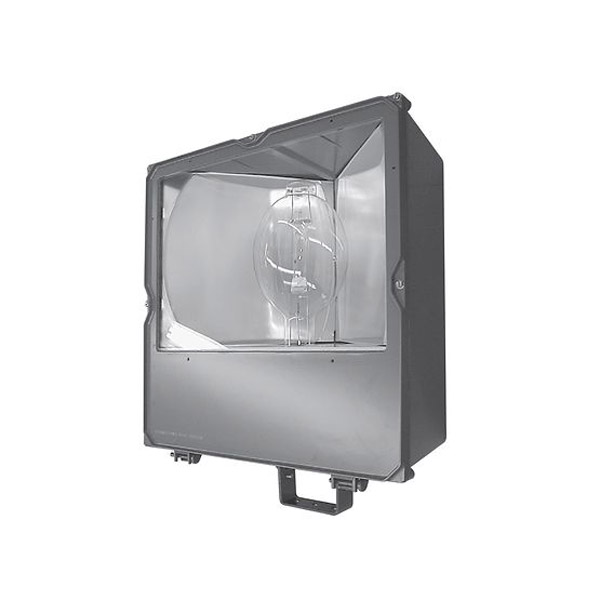

Appleton™ Areamaster™ 250W, 400W, 1000W, Floodlights

Features

Typical applications include pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, storage areas, waste and sewage treatment facilities, parking garages and other areas where dust, water, dirt and rough usage are a problem
Highly efficient, integrally ballasted floodlight. Has compact, lightweight, yet rugged diecast aluminum construction. Combines architecturally beautiful design with rugged dependability, simple installation and maintenance
A wide range of ballasts and voltages are available for both domestic and export applications
Integral ballast
One-piece housing with one-piece lens cover. The cover is secured by four 1/4″” diameter captive stainless steel slotted hex-head bolts
Thermal shock and impact resistant glass lens
Heavy duty, high temperature silicone rubber gasket, firmly seated
Heavy duty mogul-base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and spring-loaded center contact
Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
Yoke mount, zinc plated steel yoke with architectural bronze polyester finish
3/4″” NPT tapped hub for power entry

Specifications

NEC/CEC Certifications and Compliances	Listed for ordinary and marine locations
NEC Certifications and Compliances	Class I, Division 2, Groups A, B, C, D
CEC Certifications and Compliances	Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, Ex nR, Groups IIA, IIB, IIC
Specific Wattages	1000 W HPS, MH, PSMH
Electrical	120/208/240/277 V, 60 Hz; 120/277/347 V, 60 Hz; 480 – 60 Hz; 600 V, 60 Hz
Standard Materials and Finishes	Copperfree (4/10 of 1% max.) aluminum housing and lens door architectural bronze polyester finish, finished aluminum reflector, silicone rubber gasket and stainless steel bolts. The socket is nickel-plated heavy duty porcelain with heavy gauge brass shel
Floodlight Mounting	Yoke mount, zinc plated steel yoke with architectural bronze polyester finish
Additional Certification	Ex nR and Division 2 versions are available
