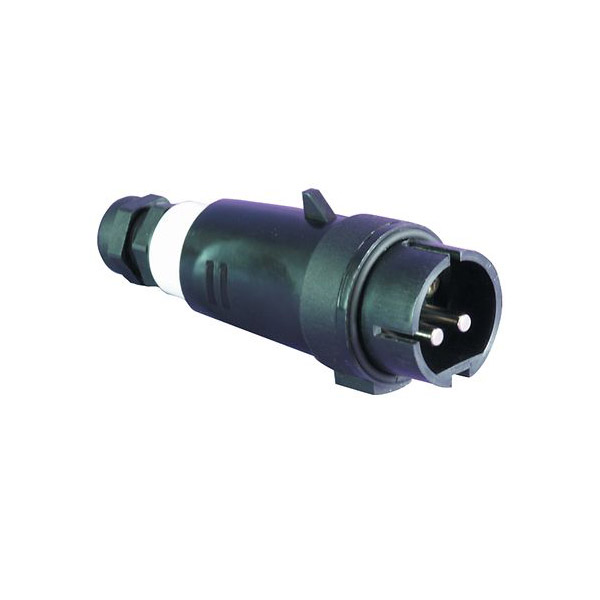

PRE Series 16 Amp Plugs and Sockets use a pin and sleeve design to deliver safe power to stationary and portable equipment such as lighting systems, conveyors, heating and air conditioning equipment, compressors, pumps or motor generators. Suitable for use in damp, wet or corrosive environments, PRE plugs and sockets are keyed and color coded per IEC directives. The sockets are available in wall-mount, flush-mount and mobile versions.
Features
Plug and socket system is designed with a safe disconnect mechanism to insure maximum hazardous location protection
The contact separation is in a flameproof chamber
The automatic electrical disconnection of each phase is contained in a second flameproof chamber
Short circuit protection is 20 kA, while normal reference is 10 kA
Different voltages are color coded for easy identification
The receptacles are keyed to accept only ATX plugs (other plugs cannot be inserted)
ATX plugs can be used in non-hazardous IEC 309 sockets
Operating temperature of -40 °C to +55 °C (-40 °F to +131 °F)
