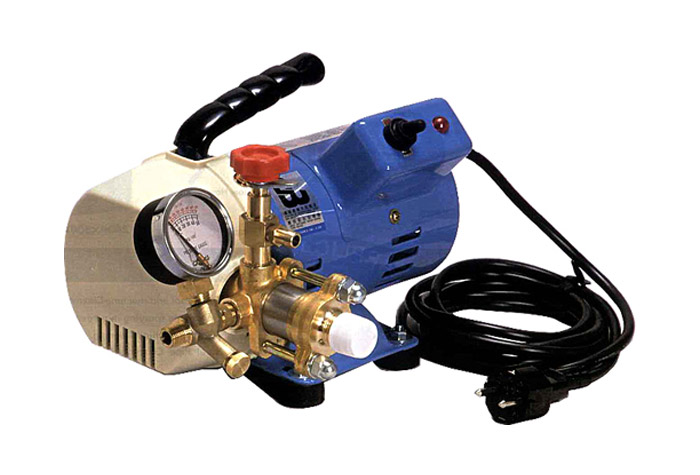

KYOWA JET CLEANER KYC-20A

New and Striking Pumps for Cleaning Applications from KYOWA!
“KYOWA” JET CLEANER KYC-20A with Unique Pumping Mechanism(Pat.Pendeing)

They are Compact, Super Lightweight, and Unbeatable in Pumping Performance.

KYOWA JET CLEANPAK

Oil-less construction (no lubrication oil grease required) needs no maintenance.
High-pressure output comes from an efficiency-oriented “no-nonsense” design.
Differential operation (one suction and two dischargers per cycle) keeps the discharge fluctuations very low.
Close-coupled construction eliminates problems normally associated with the motor drive, such as belt slipping.
Design that fully utilizes rolling frictions (utility model and design registration being applied for) keeps the starting torque to a minimum and provides maximum output.
Simple and rugged construction permits easy disassembly, cleaning, and re-assembly.
The compact and super-lightweight structure makes it handy and portable.
Newly developed universal nozzle permits almost every washing job with ease.

Type.	Dimensions in mm, L×H×W	Weight in kg	Pump			Electric Motor
Type.	Dimensions in mm, L×H×W	Weight in kg	Pressure in kg/cm2	Discharge in l/min	Revolutions per minute	Type**	Output in W
CLEANPAK. KYC-20A	250×210×230	9	40(PSI 560)	2.9/3.5	1430/1740	Single-phase, 50/60Hz	250

T-50N shown, Configuration differs slightly for T-300N, T-500N and T-1000N.
Please be sure to specify model when you contact us.

APPLICATIONS

1. Air conditioner Cleaning.
2. Car engine compartment Cleaning.
3. Washing and finishing in plasterers work.
4. Food processing eqipment Cleaning.
5. Farm tool and machine Cleaning.
6. Insecting machine Cleaning.
7. Steel Pipe Cleaning.
