SPECIFICATIONS
| Max pressure Mpa |
Plunger dia. |
Stroke mm |
Suction rate/stroke c.c. |
Tank volum l |
Discharge nozzle size |
Weight kg |
Size L×H×W |
Accessories | |

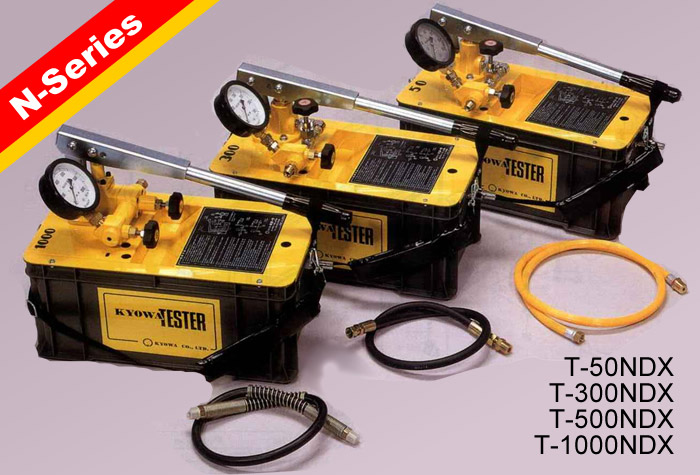

| T-50NDX | 5 | 30 | 45 | 32.0 | 18 | 3/8 | 8.0 | 610×375×290 | Hose ass’y with coupler 3/8k×1.5m |
| T-300NDX | 30 | 12 | 45 | 5.0 | 18 | 3/8 | 8.0 | 610×375×290 | Hose ass’y 3/8k×1m |
| T-500NDX | 50 | 8 | 30 | 1.5 | 18 | 3/8 | 9.5 | 630×410×270 | Hose ass’yr 3/8k×1m |
| T-1000NDX | 100 | 8 | 30 | 1.5 | 18 | 3/5 | 9.5 | 630×410×270 | Hose ass’yr 3/8k×1m |
N-Series CONSTRUCTION
T-50N shown, Configuration differs slightly for T-300N, T-500N and T-1000N.
Please be sure to speeify model when you contact us.
|
|
TESTER INSTALLATION
TESTING PROCEDURE
(1) Connest valves C,D to the test pipe.
(2) Connect to the valve D with a connecting hose.
(3) Feed water into the test pipe from this tester tank or the city water service line, through the vlve D, while purging out the air from valve C.(Feef water till the pipe gets full.)
(4) Replenish water into the water tank and then open valves A,B. Thereafter, reciprocate vertically the handle(B) till water begins to come out from the valve B after complete purge-out of the air from the pump. When the water vegan to come out, close the valve B tightly.
(5) Open the valve D and feed water from the tester till water begins to flow out from the valvw C, subsequent to purge-out of the air. When water began to flow out, close the valve C tightly.
(6) When the specified pressure is reached, close the valve A tightly.
●At this time, pressure is reached, close the valve A tightly.
Reversely, no-drop of pressure will show that the test pipe passes the pressure test.
(7) After the test, release the applied pressure through the valve B.
●When continuous water feed is required, connect the ball tap to city water service line.
