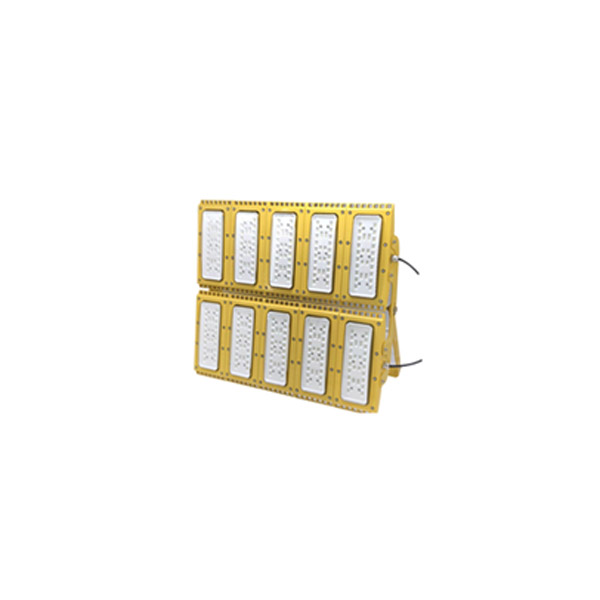

LED explosion-proof module lamp 500W product features:
1. Aluminum alloy die casting shell with high voltage electrostatic spraying on the surface.
2. High corrosion resistant SUS304 stainless steel exposed fasteners;
3. The two light distribution system designed by professional optical software has reasonable beam distribution, uniform illumination, high reflection efficiency and high utilization efficiency.
4. PC material is made of transparent cover with high transmittance and strong impact resistance.
5, the installation method is varied, and can be customized according to the requirements.
6. Cable wiring;
LED explosion-proof module lamp 500W product parameters:
| Execution standard | GB3836-2000 |
| explosion-proof sign | Exd IIC T6 Gb |
| protection grade | IP65 |
| anticorrosion grade | WF2 |
| thread entrance | G15 |
| Shape size | 730X630X155mm |
| net product weight: | 29.5kg |
| Outer box size | 770X675X190mm |
| product gross | 31.8kg |
| Working environment | 20 C ~ +40 C |
| input voltage | AC90-265V (AC/DC 24V 36V custom) |
| Frequency range | 47-63Hz |
| Design power | 50W 2*50W 3*50W 4*50W-10*50W |
| power factor | more than 0.97 |
| light source type | EMC3030 |
| lamp life | 50000H |
| Display index | 80Ra |
| LED color temperature | 5500K |
| LED light effect | 100lm/w |
