Welding Blankets

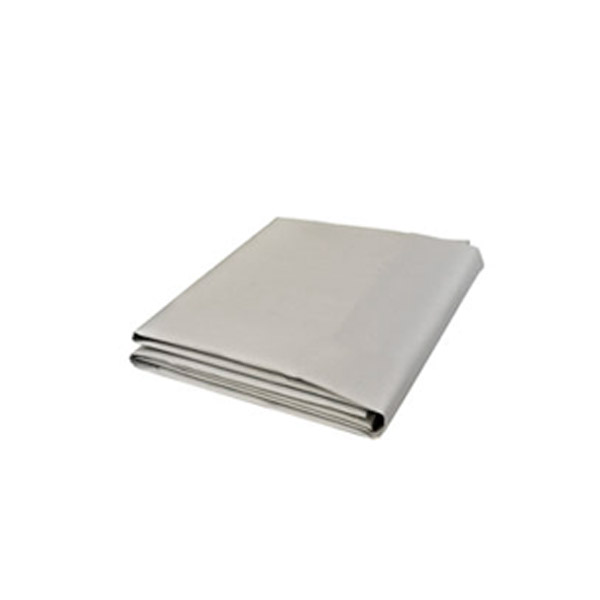

A welding blanket is a piece of safety equipment designed to protect equipment and the welder while welding. A welding blanket typically consists of a layer of flexible protective material containing unexpanded vermiculite and inorganic heat resistant fibrous material.

Lotus offers an extensive product package to provide shielding against sparks and welding spatters. The choice depends on the type of risk, the frequency of use, the proximity of the spark source and the different environmental factors. Products can be supplied for horizontal applications or vertical solutions. In a great many cases it is also necessary and possible to supply custom made products. In order to help you choosing the blanket suitable for you, we have divided our welding blanket into 3 product groups, as shown above.

Category:

Premium

Lotus Premium welding blankets meet the highest quality standards and are made from top quality materials. They can be used in situations where spatter or sparks reach very high temperatures. Lotus Premium welding blankets are available in various standard sizes or can be custom-made according to the client’s specifications.

    • Approved according to the highest applicable standards
    • Suitable for horizontal and vertical use
    • Produced from high-quality materials
    • Suitable for high to extremely high temperatures
    •  Fibreglass cloth (texturized)
    • 1 sided aluminium foil
    • Temperature resistance 550°C
    • Radiation temperature 1.000°C
    • Protection against radiation heat
    • Material weight 1,060 gram/m².

Ares is a fiberglass fabric, with an aluminum foil on one side. The foil is applied to the fabric (heat resistant bonding agent) and gives the fabric a high heat radiation reflection. Temperature resistance fabric 550°C, radiation temperature ± 1000ºC and contact temperature bonding agent ± 180ºC.

Ares welding blankets are very suitable for protection against radiation heat. The foil with which the fabric is coated is resistant to abrasion and cracks.

Technical Information

  • Lotus recommends the use of multiple layers for maximum protection.
  • Always use welding blankets at an angle of at least 15 degrees.
  • The temperatures shown are only an indication.
  • The suitability of the selected product should always be tested beforehand.
  • Regularly check welding blankets for tears and or other damage.
  • Replace damaged blankets where necessary.
  • Welding blankets can be used for many purposes and therefore, no guarantee can be given on their use.
  • The end user is responsible for determining whether the welding blanket is suitable for use in a specific situation and whether it offers sufficient protection during the work to be performed.
  • Lotus welding blankets are sewn on the cut edges with best quality Kevlar thread

Custom-made Welding Blankets

The specifications for custom-made welding blankets are:

  • Sewn on the cut edges.
  • Minimum size available is 1m².
  • Maximum size available is 15m².
  • The minimum length per side is 100cm.
  • Welding blankets are made with 5cm tolerance on the provided measurements
  • Custom-made welding blankets are not returnable
Name Measurements
Width 100 cm full roll 50 m¹
Ready-made blankets can be supplied on request

Basic

Basic welding blankets are versatile and have an excellent price-quality ratio. The Lotus Basic programme includes a large variety of blankets with different weights and temperature resistance. LotusBasic welding blankets are available in several standard sizes or can be custom-made according to the client’s specifications.

  • Approved according to the highest applicable standards
  • Suitable for vertical use
  • Excellent price-quality ratio
  • All-round welding blankets
  • Suitable for high temperatures
  • Silica fabric (filament)
  • High temperatures up to 1000 °C
  •  Peak temperature approx. 1300°C
  •  Extreme circumstances
  •  Suitable for horizontal use
  •  Material weight 600 gram/m²

Description

For the Leto heat resistant fabric high quality silica fibres are used, which are environmentally non-hazardous. Leto is treated with a mineral based finish to improve its abrasive resistance and the resistance to fraying. Leto is free of asbestos!

The maximum application temperature is 1000 °C, shortly up to 1300°C.

Leto is recommended for horizontal use, for example as a welding and grinding curtain in situations in which very high temperatures are reached. Leto silicate-fabrics have excellent characteristics in relation to handling and resistance to high temperature loads. Therefore this fabric is suitable for use as welding blanket even under extreme conditions.

Technical  Information

  • CEPRO recommends the use of multiple layers for maximum protection.
  • Always use welding blankets at an angle of at least 15 degrees.
  • The temperatures shown are only an indication.
  • The suitability of the selected product should always be tested beforehand.
  • Regularly check welding blankets for tears and or other damage.
  • Replace damaged blankets where necessary.
  • Welding blankets can be used for many purposes and therefore, no guarantee can be given on their use.
  • The end user is responsible for determining whether the welding blanket is suitable for use in a specific situation and whether it offers sufficient protection during the work to be performed.
  • CEPRO welding blankets are sewn on the cut edges with best quality Kevlar thread

Custom-made Welding Blankets

The specifications for custom-made welding blankets are:

  • Sewn on the cut edges.
  • Minimum size available is 1m².
  • Maximum size available is 15m².
  • The minimum length per side is 100cm.
  • Welding blankets are made with 5cm tolerance on the provided measurements
  • Custom-made welding blankets are not returnable
Name Measurements
Width 100 cm full roll 50 m¹
Ready-made blankets can be supplied on request
